Preview an SG Mesh with PyVista#

Problem Description#

Once a Structure Gene (SG) is read into sgio, it is useful to see the mesh — the geometry, the cell blocks, and per-element data such as property_id — before running an analysis. This example reads a VABS cross-section and renders its mesh with PyVista.

Solution#

sgio.SGMesh is a backend-neutral mesh container, and sgio provides a bridge to PyVista so any SG mesh can be handed to VTK’s renderer:

  1. Read the cross-section into a sgio.StructureGene with sgio.read().

  2. Call sg.mesh.to_pyvista() to get a pyvista.UnstructuredGrid. Geometry, point_data, and cell_data (e.g. property_id) cross the bridge.

  3. Render it — here a headless screenshot; drop off_screen / screenshot for an interactive window.

  4. SGMesh.from_pyvista(grid) shows the reverse bridge (grid back to SGMesh).

"""Preview a Structure Gene mesh with pyvista.

Reads a VABS cross-section, bridges its ``SGMesh`` to a ``pyvista`` grid
(:meth:`SGMesh.to_pyvista`), renders a preview image, and demonstrates the
reverse bridge (:meth:`SGMesh.from_pyvista`).

pyvista is an optional dependency::

    pip install sgio[pyvista]     # or: uv pip install pyvista
"""
import logging
from pathlib import Path

import sgio
from sgio.core.mesh import SGMesh

logging.basicConfig(level=logging.INFO)
cwd = Path(__file__).resolve().parent

# 1. Read a Structure Gene (2D triangular cross-section mesh).
sg = sgio.read(
    str(cwd / "sg21t_tri3.sg"),
    file_format="vabs",
    format_version="4",
    sgdim=2,
    model_type="BM2",
)

# 2. Bridge the SG mesh to a pyvista UnstructuredGrid.
grid = sg.mesh.to_pyvista()
print(grid)

# 3. Preview. ``off_screen`` + ``screenshot`` make the example run headless;
#    drop both arguments for an interactive window (grid.plot(...)).
# The 2D cross-section lives in the Y-Z plane, so look down the X axis.
grid.plot(
    scalars="property_id",
    show_edges=True,
    cpos="yz",
    off_screen=True,
    screenshot=str(cwd / "preview.png"),
)
print(f"Saved preview to {cwd / 'preview.png'}")

# 4. Reverse bridge: pyvista grid back to an SGMesh.
mesh_back = SGMesh.from_pyvista(grid)
print("Round-trip cell blocks:", [(cb.type, len(cb)) for cb in mesh_back.cells])

Note

PyVista is an optional dependency (it pulls in vtk). The core sgio IR does not require it; to_pyvista imports PyVista lazily and only fails if you call it without PyVista installed. Install it with pip install sgio[pyvista].

Result#

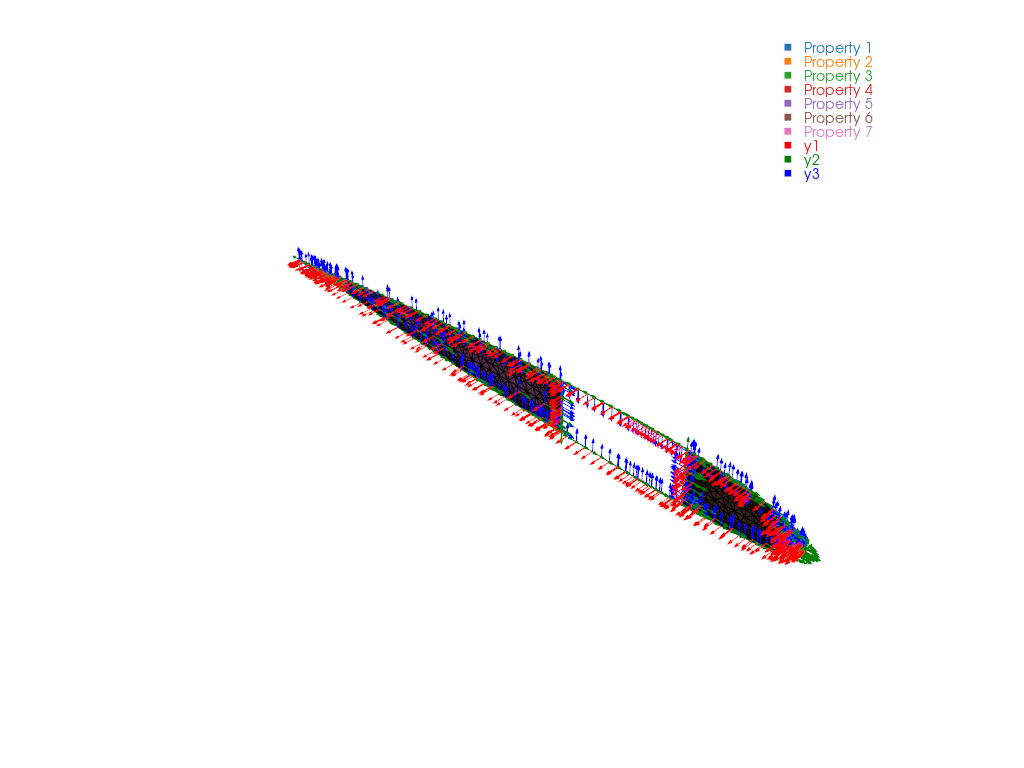

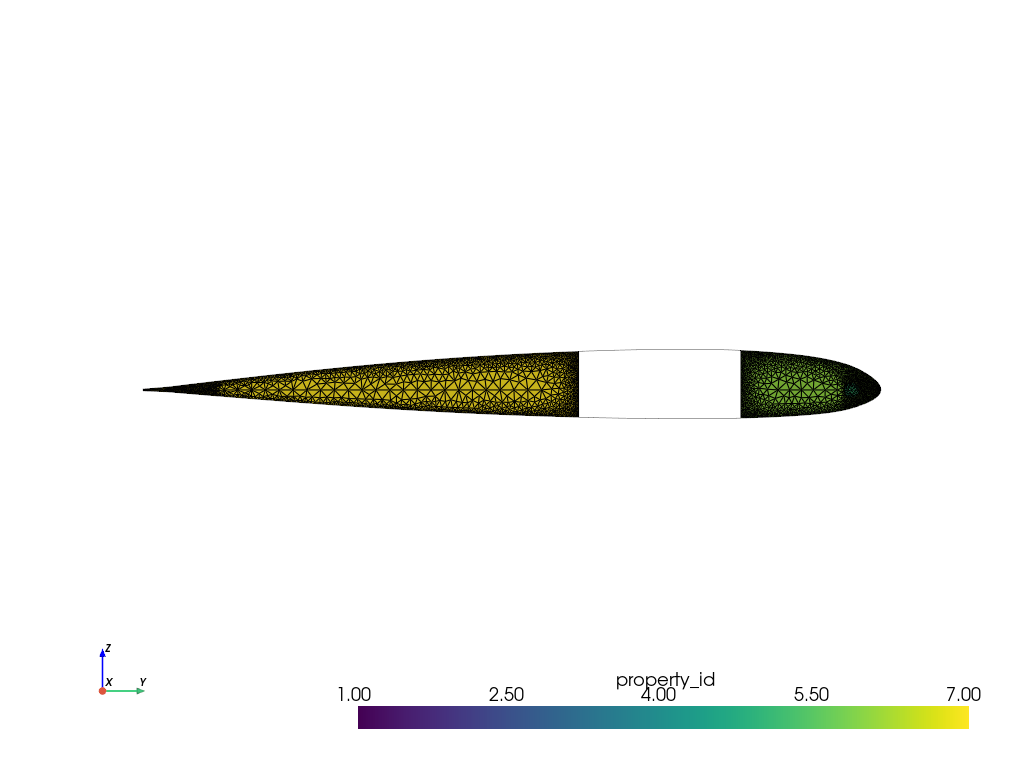

The script prints the grid summary and the reverse-bridge cell blocks, and writes preview.png — the airfoil cross-section colored by property_id with mesh edges shown. The 2D section lies in the Y-Z plane, so the camera looks down the X axis (cpos="yz").

../_images/preview.png
