Box with Quad Mesh

Box example meshed with quadrilateral elements.

Notes

This case reuses the box-beam layout but switches the mesh to quadrilateral elements:

<element_shape>quad</element_shape>
<element_type>linear</element_type>

It is useful as a compact regression case when changes affect mesh generation or quadrilateral element handling.

---

Input

• box_II.xml

• materials.xml

---

Run the example

prevabs -i box_II.xml --hm

---

Output

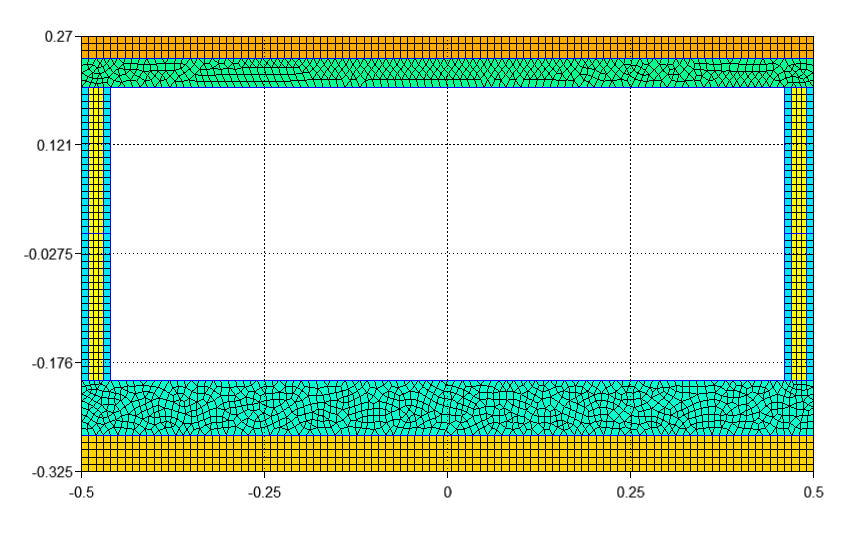

Figure 28 Cross section viewed in gmsh.

• box_II.png
