Airfoil with Multiple Cells#

MH-104 airfoil example with multiple internal cells.

Notes#

This example extends the MH-104 airfoil case to multiple internal cells. It is mainly useful for regression coverage of more complex topology and segmentation patterns inside the same outer airfoil shape.

Input#

Run the example#

prevabs -i mh104_9webs.xml --hm

Output#

../../_images/mh104_9webs.png

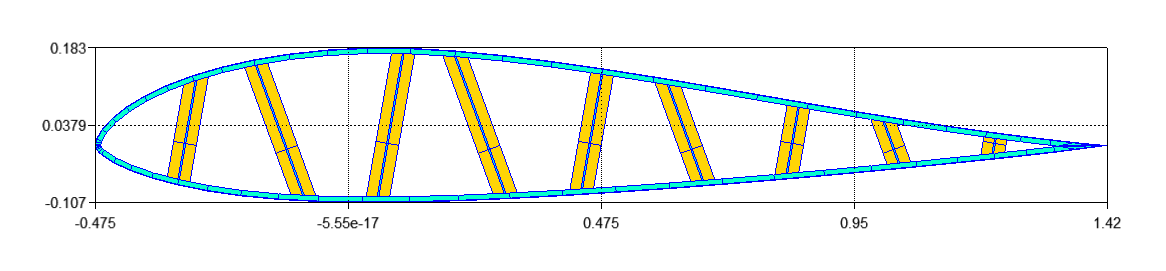

Figure 40 Cross section viewed in gmsh.#
